01PS

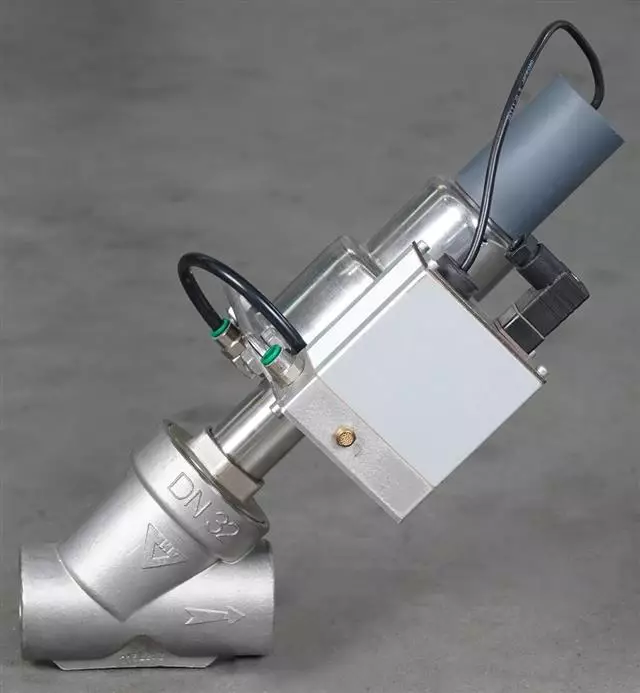

Two-way, angle-seat control valve, equipped with stainless-steel actuator, positioner and linear transducer, available in sizes from ½” to 2”1/2

01PS

Main Features

  • Stainless-steel body in AISI316 (1.4408)
  • Actuator in stainless-steel AISI 304 (1.4301)
  • Plug seal in modified PTFE
  • Packing in PTFE+FPM;
  • Guided shaft for stable axial movement
  • Stainless-steel actuator in AISI304 (1.4301)
  • Max temperature up to +225 °C (437 °F)
  • Power supply: 24V AC 2 W
  • Control signal:   4-20 mA / 0-10 V
  • Air supply: 6/8 bar
  • Connections:     BSPP – NPT – BW – SW - DIN / ANSI flanges

01 PS Schema funzionamento Hofmann
