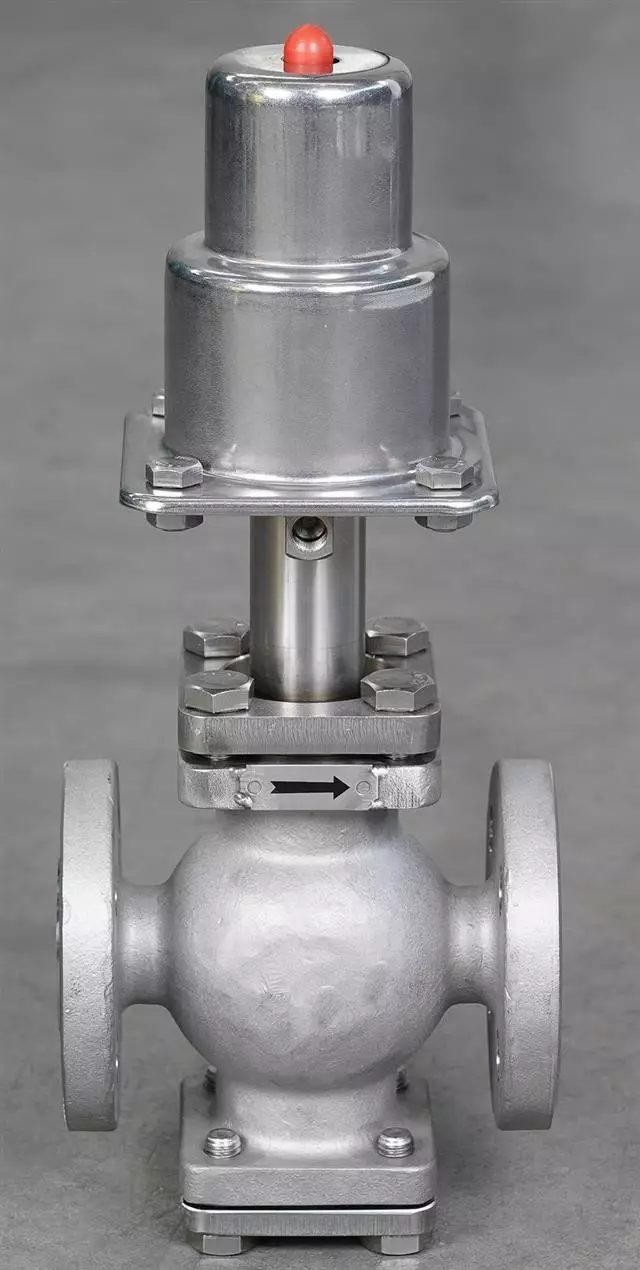

03FA-2

Conveyed-flow globe valve with body in nodular cast iron GJS-400-18-LT (GGG40.3) or stainless steel CF8M/316 (1.4408) and actuator in AISI 304

03FA-2


ATEX II2GD c IIB X

  • Body in nodular cast iron EN-GJS-400-18-LT or stainless steel CF8M/316
  • Actuator in stainless steel AISI 304
  • Normally-closed, normally-open, double-effect function
  • Seal in modified PTFE
  • Packing in PTFE and FPM
  • Guided shaft for stable axial movement
  • Self-centering plug to ensure perfect positioning
  • Maximum temperature up to +210 °C (410 °F)
  • Feeding air pressure from 6 to 8 bar (from 87 to 116 psi)
  • Connections: DIN/ANSI flanges

Standard normally open functioning

 Standard normally close functioning
