38M

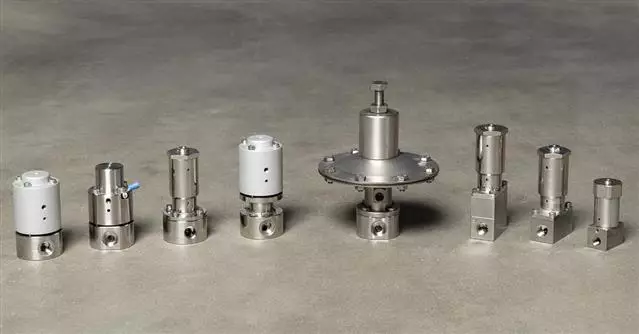

Micro-flow valves with body in stainless steel AISI 316 for interception and regulation processes

38M


ATEX II2GD c IIC X

Series MA-MASQ

  • Body and bonnet in stainless steel AISI 316
  • Actuator in anodized aluminum or stainless steel AISI 304
  • Seal in PTFE
  • Maximum temperature up to +165 °C (329 °F)
  • Connections: BSPP - NPT

Series MA/PRO-MASQ/PRO

  • Body and bonnet in stainless steel AISI 316
  • Actuator in anodized aluminum or stainless steel AISI 304
  • Seal in PTFE
  • Maximum temperature up to +205 °C (401 °F)
  • Connections: BSPP - NPT

Series MNA-MNASQ

  • Cylindrical body in stainless steel AISI 316
  • Actuator in stainless steel AISI 304
  • Seal in PTFE
  • Gaskets in FPM and PTFE
  • Maximum temperature up to +175 °C (347 °F)
  • Connections: BSPP - NPT

Series MNA/PRO-MNASQ/PRO

  • Cylindrical body in stainless steel AISI 316
  • Actuatore in stainless steel AISI 304
  • Seal in PTFE
  • Gaskets in FPM and PTFE
  • Maximum temperature up to +205 °C (401 °F)
  • Connections: BSPP - NPT

Serie MN-MNSQ

  • Cylindrical body in stainless steel AISI 316
  • Actuator stainless steel AISI 304
  • Seal in PTFE
  • Gaskets in FPM and PTFE
  • Maximum temperature up to +175 °C (347 °F)
  • Connections: BSPP - NPT

Series MNS

  • Body in stainless steel AISI 316
  • Ø22mm actuator in stainless steel AISI 304
  • Seal in PTFE
  • Gaskets in FPM
  • Maximum temperature up to +150 °C (302 °F)
  • Connections: BSPP - NPT

Series MNT

  • Three-way body in stainless steel AISI 316
  • Actuator in stainless steel AISI 304
  • Seal in PTFE
  • Packing in PTFE
  • Maximum temperature up to +175 °C (347 °F)
  • Connections: BSPP - NPT

Series MMD

  • Control valve with control signal 0,6/0,7 - 1,2 bar
  • Body in stainless steel AISI 316
  • Actuator in stainless steel AISI 304
  • Seal in PTFE
  • Packing in PTFE
  • Maximum temperature up to +175 °C (347 °F)

MA MNA normally close functioning

Finzionamento MA MNA

MASQ MNASQ normally close functioning

MN e MNS normally close functioning

Funzionamento MN

MNSQ normally close functioning

Funzionamento MNSQ

MNT

Funzionamento MNT

MMD

Schema funzionamento MMD
